Tutorial on basic parallelism

Parallelism in ABINIT, generalities and environments.

There are many situations where a sequential code is not enough, often because it would take too much time to get a result. There are also cases where you just want things to go as fast as your computational resources allow it. By using more than one processor, you might also have access to more memory than with only one processor. To this end, it is possible to use ABINIT in parallel, with dozens, hundreds or even thousands of processors.

This tutorial offers you a quick guided tour inside the complex world that emerges as soon as you want to use more than one processor. From now on, we will suppose that you are already familiar with ABINIT and that you have gone through all four basic tutorials. If this is not the case, we strongly advise you to do so, in order to truly benefit from this tutorial.

We strongly recommend you to acquaint yourself with some basic concepts of parallel computing too. In particular Almdalh’s law, that rationalizes the fact that, beyond some number of processors, the inherently sequential parts will dominate parallel parts, and give a limitation to the maximal speedup that can be achieved.


With the broad availability of multi-core processors, everybody now has a parallel machine at hand. ABINIT will be able to take advantage of the availability of several cores for most of its capabilities, be it ground-state calculations, molecular dynamics, linear-response, many-body perturbation theory, …

Such tightly integrated multi-core processors (or so-called SMP machines, meaning Symmetric Multi-Processing) can be interlinked within networks, based on Ethernet or other types of connections. The number of cores in such composite machines can easily exceed one hundred, and go up to several millions these days. Most ABINIT capabilities can use efficiently several hundred computing cores. In some cases, even more than ten thousand computing cores can be used efficiently.

Before actually starting this tutorial and the associated ones, we strongly advise you to get familiar with your own parallel environment. It might be relatively simple for a SMP machine, but more difficult for very powerful machines. You will need at least to have MPI (see next section) installed on your machine. Take some time to determine how you can launch a job in parallel with MPI, what are the resources available and the limitations as well. Perhaps you will have to use a batch system (typically the qsub or sbatch command and an associated shell script). Do not hesitate to discuss with your system administrator if you feel that something is not clear to you.

We will suppose in the following that you know how to run a parallel program and that you are familiar with the peculiarities of your system. Please remember that, as there is no standard way of setting up a parallel environment, we are not able to provide you with support beyond ABINIT itself.

Characteristics of parallel environments

Different software solutions can be used to benefit from parallelism. Most of ABINIT parallelism is based on MPI, but significant additional speedup (or a better distribution of data, allowing to run bigger calculations) is based on OpenMP and multi-threaded libraries. As of writing, efforts also focus on Graphical Processing Units (GPUs), with CUDA and MAGMA. The latter will not be described in the present tutorial.


MPI stands for Message Passing Interface. The goal of MPI, simply stated, is to develop a widely used standard for writing message-passing programs. As such the interface attempts to establish a practical, portable, efficient, and flexible standard for message passing.

The main advantages of establishing a message-passing standard are portability and ease of use. In a distributed memory communication environment in which the higher-level routines and/or abstractions are build upon lower-level message-passing routines, the benefits of standardization are particularly obvious. Furthermore, the definition of a message-passing standard provides vendors with a clearly defined base set of routines that they can implement efficiently, or in some cases provide hardware support for, thereby enhancing scalability (see

At some point in its history MPI has reach a critical popularity level, and a bunch of projects have popped-up like daisies in the grass. Now the tendency is back to gathering and merging. For instance, Open MPI is a project combining technologies and resources from several other projects (FT-MPI, LA-MPI, LAM/MPI, and PACX-MPI) in order to build the best MPI library available. Open MPI is a completely new MPI3.1-compliant implementation, offering advantages for system and software vendors, application developers and computer science researchers (see


The OpenMP Application Program Interface (API) supports multi-platform shared-memory parallel programming in C/C++ and Fortran on all architectures, including Unix platforms and Windows NT platforms. Jointly defined by a group of major computer hardware and software vendors, OpenMP is a portable, scalable model that gives shared-memory parallel programmers a simple and flexible interface for developing parallel applications for platforms ranging from the desktop to the supercomputer (

OpenMP was rarely used within ABINIT versions < 8.8.x, and only for specific purposes. Last versions > 8.8 now benefits from multi-threaded libraries speedup like MKL and fftw3. Still not mandatory, on new architectures, multithreading shows better performances than MPI (if and only if an multithread version of linear algebra library is provided)


Scalapack is the parallel version of the popular LAPACK library (for linear algebra). It can play some role in the parallelism of several parts of ABINIT, especially the LOBPCG algorithm in ground state calculations, and the parallelism for the Bethe-Salpether equation. ScaLAPACK being itself based on MPI, we will not discuss its use in ABINIT in this tutorial.


Scalapack is not thread-safe in many versions. Combining OpenMP and Scalapack can result in unpredictable behaviours.

Fast/slow communications

Characterizing the data-transfer efficiency between two computing cores (or the whole set of cores) is a complex task. At a quite basic level, one has to recognize that not only the quantity of data that can be transferred per unit of time is important, but also the time that is needed to initialize such a transfer (so called latency).

Broadly speaking, one can categorize computers following the speed of communications. In the fast communication machines, the latency is very low and the transfer time, once initialized, is very low too. For the parallelised part of ABINIT, SMP machines and machines with fast interconnect will usually not be limited by their network characteristics, but by the existence of residual sequential parts. The tutorials that have been developed for ABINIT have been based on fast communication machines.

If the set of computing cores that you plan to use is not entirely linked using a fast network, but includes some connections based e.g. on Ethernet, then, you might not be able to benefit from the speed-up announced in the tutorials. You have to perform some tests on your actual machine to gain knowledge of it, and perhaps consider using multithreading.

What parts of ABINIT are parallel?

Parallelizing a code is a very delicate and complicated task, thus do not expect that things will systematically go faster just because you are using more processors. Please keep also in mind that in some situations, parallelization is simply impossible. At the present time, the parts of ABINIT that have been parallelized, and for which a tutorial is available, include:

Note that the tutorial on parallelism over bands and plane waves presents a complete overview of the parallelism for the ground state, including up to four levels of parallelisation and, as such, is rather complex. Of course, it is also quite powerful, and allows to use several hundreds of processors.

Albeit, the two levels based on

  • the treatment of k-points in reciprocal space;
  • the treatment of spins, for spin-polarized collinear situations nsppol = 2);

are, on the contrary, quite easy to use. Examples of such parallelism will be given in the next sections.

A simple example of parallelism in ABINIT


Supposing you made your own installation of ABINIT, the input files to run the examples are in the ~abinit/tests/ directory where ~abinit is the absolute path of the abinit top-level directory. If you have NOT made your own install, ask your system administrator where to find the package, especially the executable and test files.

In case you work on your own PC or workstation, to make things easier, we suggest you define some handy environment variables by executing the following lines in the terminal:

export ABI_HOME=Replace_with_absolute_path_to_abinit_top_level_dir # Change this line
export PATH=$ABI_HOME/src/98_main/:$PATH      # Do not change this line: path to executable
export ABI_TESTS=$ABI_HOME/tests/             # Do not change this line: path to tests dir
export ABI_PSPDIR=$ABI_TESTS/Psps_for_tests/  # Do not change this line: path to pseudos dir

Examples in this tutorial use these shell variables: copy and paste the code snippets into the terminal (remember to set ABI_HOME first!) or, alternatively, source the script located in the ~abinit directory:

source ~abinit/

The ‘export PATH’ line adds the directory containing the executables to your PATH so that you can invoke the code by simply typing abinit in the terminal instead of providing the absolute path.

To execute the tutorials, create a working directory (Work*) and copy there the input files of the lesson.

Most of the tutorials do not rely on parallelism (except specific tutorials on parallelism). However you can run most of the tutorial examples in parallel with MPI, see the topic on parallelism.

Running a job

Before starting, you might consider working in a different subdirectory as for the other tutorials. Why not Work_paral?

First one needs to copy the input file from the $ABI_TESTS/tutorial directory to your work directory, namely tbasepar_1.abi.

cd $ABI_TESTS/tutorial/Input
mkdir Work_paral
cd Work_paral
cp ../tbasepar_1.abi .

You can start immediately a sequential run with

abinit tbasepar_1.abi >& log 2> err &

to have a reference CPU time. On a Intel Xeon 20C 2.1 GHz, it runs in about 40 seconds.

The input file (*.abi) might possibly be modified for parallel execution, as one should avoid unnecessary network communications. Indeed, if every node has its own temporary or scratch directory (so not in the multicore case), you can achieve this by providing a path to a local disk for the temporary files in the input file by using the tmpdata_prefix variable. Supposing each processor has access to a local temporary disk space named /scratch/user, then you might add to the input *.abi file the following line


Note that determining ahead of time the precise resources you will need for your run will save you a lot of time if you are using a batch queue system.

Also, for parallel runs, note that the log files will not be written exept the main log file. You can change this behaviour by creating a file named _LOG to enforce the creation of all log files

touch _LOG

On the contrary, you can create a _NOLOG file if you want to avoid all log files.

Parallelism over the k-points

The most favorable case for a parallel run is to treat the k-points concurrently, since most calculations can be done independently for each one of them.

Actually, tbasepar_1.abi corresponds to the investigation of a FCC crystal of lead, which requires a large number of k-points if one wants to get an accurate description of the ground state. Examine this file. Note that the cut-off is realistic, as well as the grid of k-points (giving 182 k points in the irreducible Brillouin zone). Once done, your output files for the sequential run, launched while starting to read this section, have likely been produced. Examine the timing in the output file (the last line gives the Overall time, cpu and wall), and keep note of it.

We assume you have compiled ABINIT indicating with_mpi="yes" at configuration step.

On a multi-core PC, you might succeed to use two compute cores by issuing the run command for your MPI implementation, and mention the number of processors you want to use, as well as the abinit command:

mpirun -n 2 abinit tbasepar_1.abi >& tbasepar_1.log &

Depending on your particular machine, mpirun might have to be replaced by mpiexec, and -n by some other option.

At variance, on a cluster, with the MPICH implementation of MPI, you have to set up a file with the addresses of the different CPUs. Let’s suppose you call it cluster. For a PC bi-processor machine, this file could have only one line, like the following:

For a cluster of four machines, you might have something like:


Then, you have to issue the run command for your MPI implementation, and mention the number of processors you want to use, as well as the abinit command and the file containing the CPU addresses.

On a PC bi-processor machine, this gives the following:

mpirun -np 2 -machinefile cluster ../../src/main/abinit tbasepar_1.abi >& tbasepar_1.log &

Now, examine the corresponding output file. If you have kept the output from the sequential job, you can make a diff between the two files. You will notice that the numerical results are quite identical. You will also see that 182 k-points have been kept in the memory in the sequential case (keyword mkmem), while 91 k-points have been kept in the memory (per processor !) in the parallel case.

The timing can be found at the end of the file. Here is an example:

- Proc.   0 individual time (sec): cpu=         20.0  wall=         20.1


 Calculation completed.
 Delivered    0 WARNINGs and   1 COMMENTs to log file.
+Overall time at end (sec) : cpu=         40.1  wall=         40.3

This corresponds effectively to a speed-up of the job by a factor of two. Let’s examine it. The line beginning with Proc. 0 corresponds to the CPU and Wall clock timing seen by the processor number 0 (processor indexing always starts at 0: here the other is number 1): 20.0 sec of CPU time, and nearly the same amount of Wall clock time. The line that starts with +Overall time corresponds to the sum of CPU times and Wall clock timing for all processors. The summation is quite meaningful for the CPU time, but not so for the wall clock time: the job was finished after 20.1 sec, and not 40.3 sec.

Now, you might try to increase the number of processors, and see whether the CPU time is shared equally amongst the different processors, so that the Wall clock time seen by each processor decreases. At some point (depending on your machine, and the sequential part of ABINIT), you will not be able to decrease further the Wall clock time seen by one processor. It is not worth to try to use more processors. Let us define the speedup as the time taken in a sequential calculation divided by the time for your parallel calculation (hopefully > 1) . You should get a curve similar to this one:

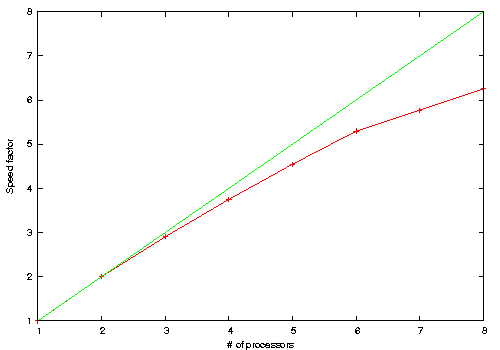

Speedup kpt Speedup with k point parallelization

The red curve materializes the speedup achieved, while the green one is the y = x line. The shape of the red curve will vary depending on your hardware configuration.

One last remark: the number of k-points need not be a multiple of the number of processors. As an example, you might try to run the above case with 16 processors: all will treat \lfloor 182/16 \rfloor=11 k points, but 182-16\times11=6 processors will have to treat one more k point so that 6*12+10*11=182. The maximal speedup will only be 15.2 (=182/12), instead of 16.

Try to avoid leaving an empty processor as this can make abinit fail with certain compilers. An empty processor happens, for example, if you use more processors than the number of k point. The extra processors do no useful work, but have to run anyway, just to confirm to abinit once in a while that all processors are alive.

Parallelism over the spins

The parallelization over the spins (up, down) is done along with the one over the k-points, so it works exactly the same way. The file tbasepar_2.abi in $ABI_TESTS/tutorial treats a spin-polarized system (distorted FCC Iron) with only one k-point in the Irreducible Brillouin Zone. This is quite unphysical, and has the sole purpose to show the spin parallelism with as few as two processors: the k-point parallelism has precedence over the spin parallelism, so that with 2 processors, one ought to have only one k-point to see the spin parallelism. If needed, modify the input file, to provide a local temporary disk space. Run this test case, in sequential, then in parallel.

While the jobs are running, read the input. Then look closely at the output and log files in the sequential and parallel cases. They are quite similar. Actually, apart the mention of two processors and the speedup, there is no other manifestation of the parallelism.

If you have more than 2 processors at hand, you might increase the value of ngkpt, so that more than one k-point is available, and see that the k-point and spin parallelism indeed work concurrently.

Number of computing cores to accomplish a task

Balancing efficiently the load on the processors is not always straightforward. When using k-point- and spin-parallelism, the ideal numbers of processors to use are those that divide the product of nsppol by nkpt (e.g. for nsppol * nkpt = 12, it is quite efficient to use 2, 3, 4, 6 or 12 processors). ABINIT will nevertheless handle correctly other numbers of processors, albeit slightly less efficiently, as the final time will be determined by the processor that will have the biggest share of the work to do.

Evidencing overhead

Beyond a certain number of processors, the efficiency of parallelism saturates, and may even decrease. This is due to the inevitable overhead resulting from the increasing amount of communication between the processors. The loss of efficiency is highly dependent on the implementation and linked to the decreasing charge on each processor too.
